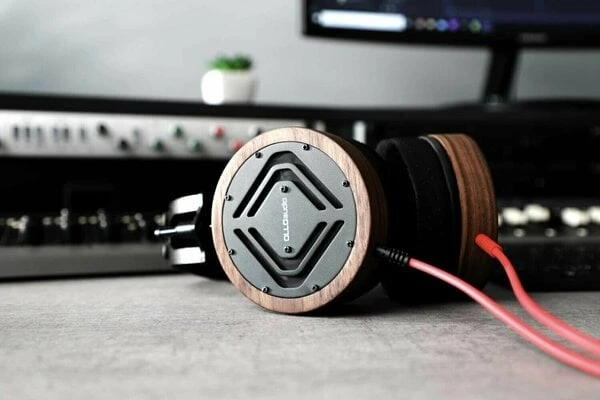

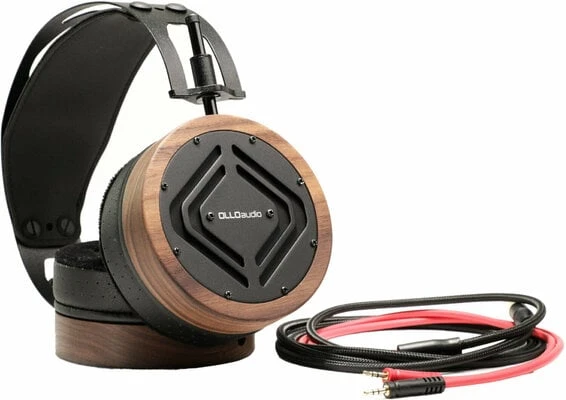

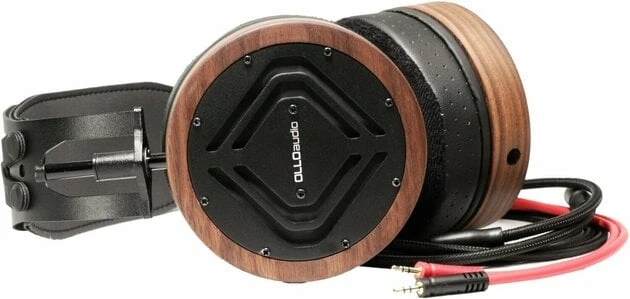

Ollo Audio S5X

Reference class, open back, dynamic headphones with flat frequency response for binaural/immersive mixing made in the EU.

SPEAKER

• Hand picked and left / right matched transducers delivering accuracy and instrument separation. (+/-1dB SPL tolerance, pink noise, range 100Hz-10kHz in free field*)
• 50 mm, PET 25u membrane, 2 layered coil, 50 ohms,
• Dynamic Neodymium speaker with 108dBSPL @ 0 dBu RMS 1KHz 30ohm output that makes them work with smart devices too.
• Replaceable using home tools.

ACOUSTICS

• Replaceable earpads with outer diameter of 95 mm(3.75inch), inner diameter of 57.5mm(2.25inch) and depth of 20mm(0.8inch), +/-2.55mm.

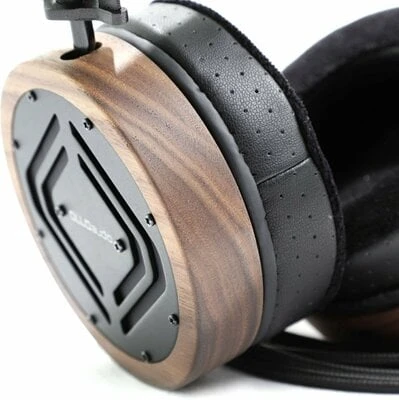

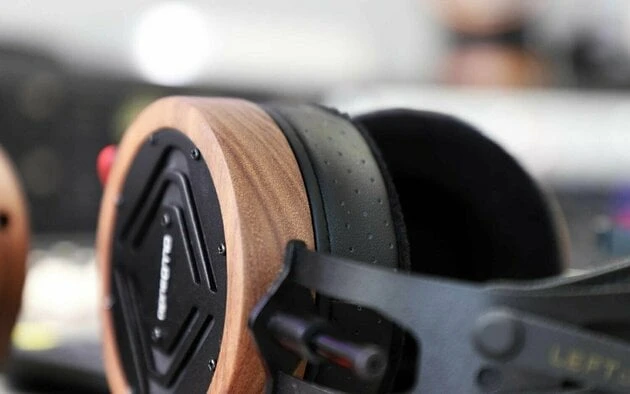

• Perforated hybrid artificial leather and velour earpads to control flow resistance around the earpads seal resulting in smoother response through all frequency bands and improved heat dispersion.
• 1kHz @ 85dBSPL sweep THD < 0.074%, Variation in frequency response in band from 20Hz to 20kHz ~12 dB SPL* pink noise.
• Front to back air pressure equalization controlled with Saati flow resistor 3.2Ohms(²)/1cm²
• Ex-centric and angled speaker in a conical radiation chassis with optimal sound stage for the spatialization of objects in binaural renderer
• Frequency response tuned for translation of immersive mix between binaural and speaker setup

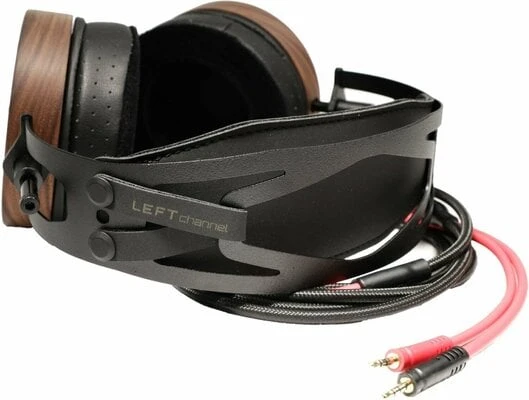

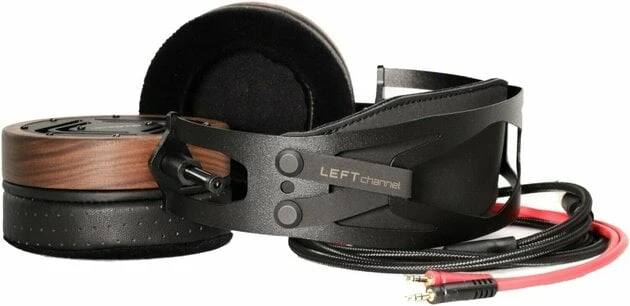

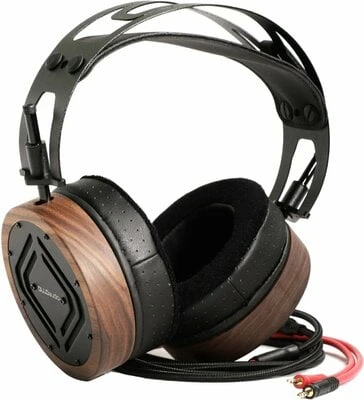

HEADBAND

• Artificial leather strap
• Clamping force set for target frequency response on industry standard bitragional diameter of 14.3cm (KEMAR)
• Stainless spring steel with powder coating

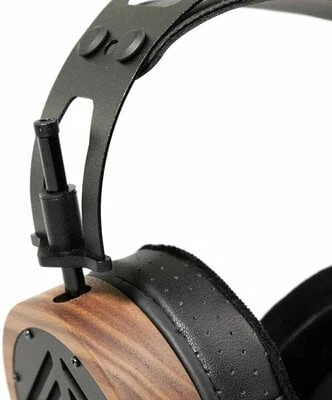

• 360 earcups rotation with sliders for head size adjustements
• Strap and steel headband are replaceable using home tools

CABLE

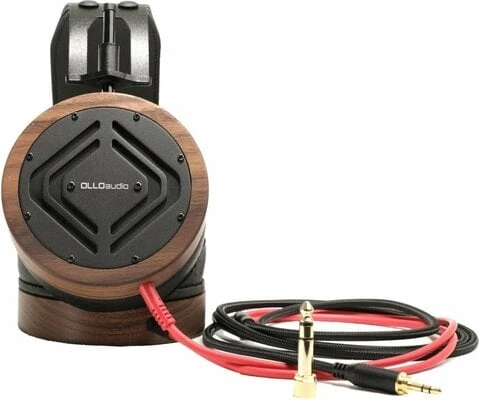

• Detachable braided silicone cable employing OFC core to ensure minimal signal distortion.

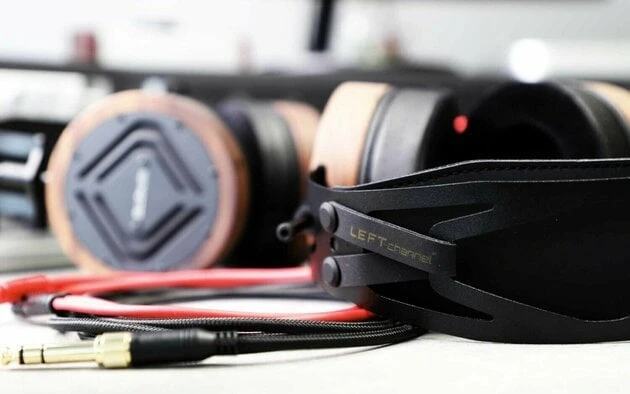

• Color labeled L and R jacks (Left is Black)
• Ball-locking mechanics on the embedded 2.5mm jack plugs
• Screw on adapter from 3.5mm to 6.3mm jacks (1/8 to 1/4 inch)
